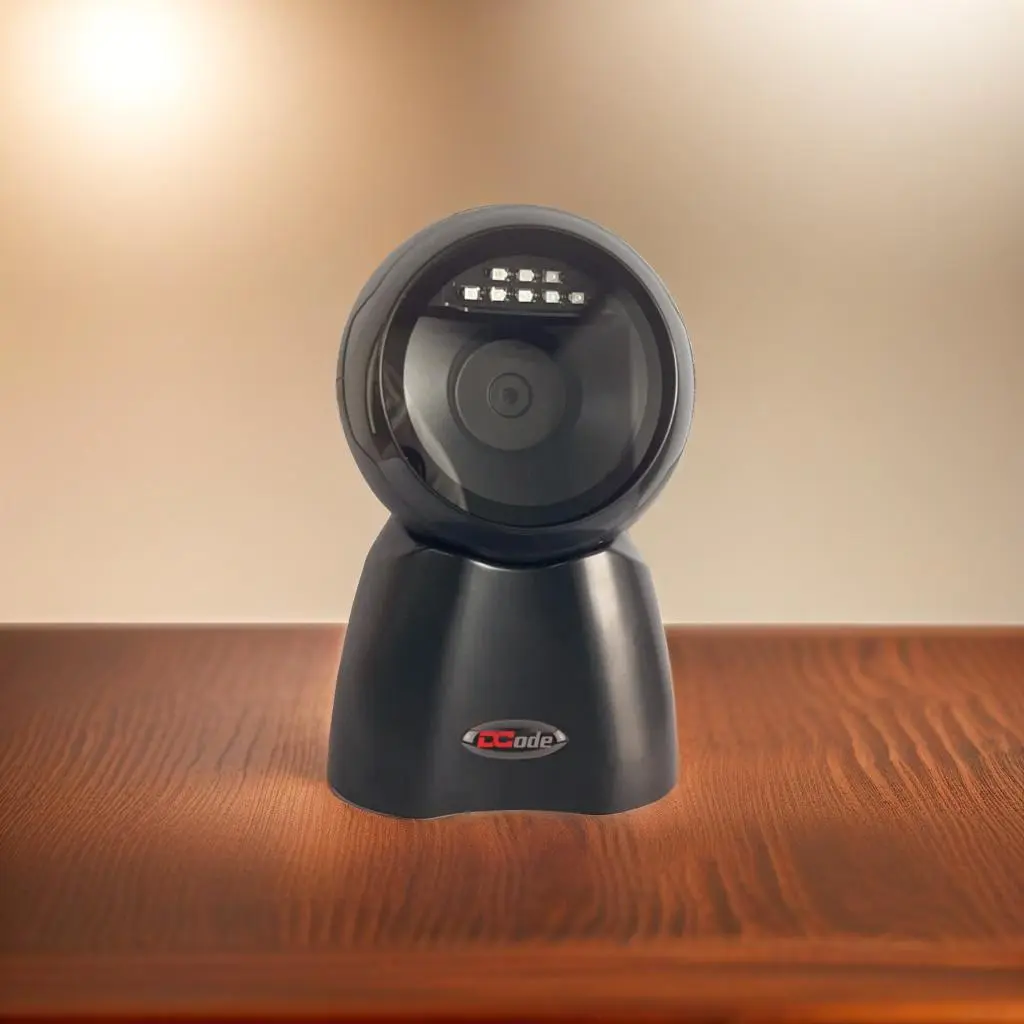

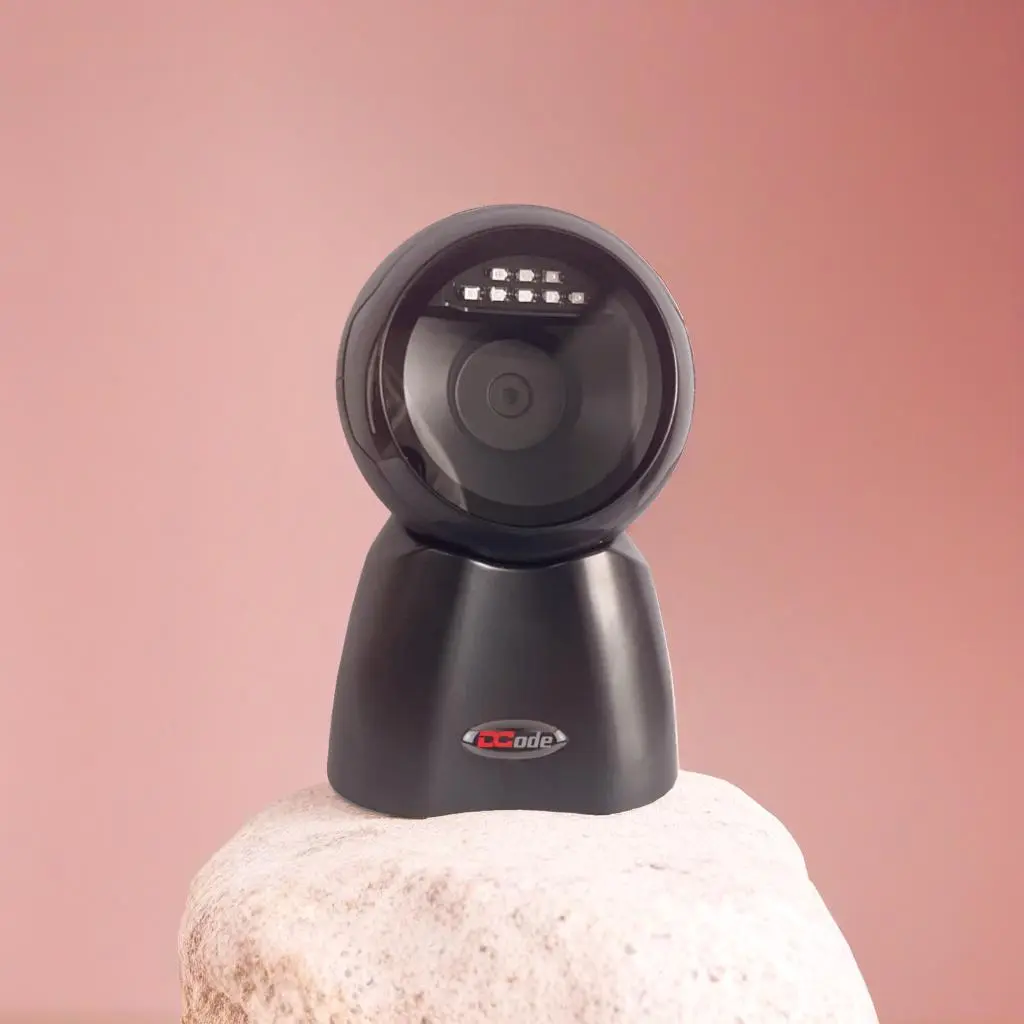

DC7132 Table Top Barcode Scanner
- 1D & 2D Omnidirectional
- USB Interface
- Hands-Free Scanning
- High Speed Reading
SKU: DC7132
Product Overview
Product Overview
The DC7132 is a state-of-the-art 2D presentation scanner equipped with auto-sense scanning and an omni-directional scan design, enabling users to scan from any angle effortlessly. Its adjustable scan head, which tilts up to 65°, offers enhanced flexibility. The scanner combines a sleek design with robust technology, making it an ideal choice for industries requiring fast, accurate barcode reading.
Efficient Features
• Auto-Sense Scan Design: Automatically detects barcodes, reducing manual intervention.• Adjustable Scan Head: Tilts up to 65° for added convenience in dynamic environments.
• Omni-Directional Scanning: Reads barcodes from any orientation for faster operation.
• Prompt Mode: Buzzer and LED indicators provide real-time feedback during scanning.
• Wide Barcode Compatibility: Supports a variety of 1D and 2D barcodes, including Codabar, QR codes, PDF417, DataMatrix, and more.
Performance
• Scanning Speed: Processes up to 500 scans per second, ensuring quick data entry.• High Resolution: Equipped with 640 x 480 CMOS for precise scanning.
• Print Contrast: Reads barcodes with a print contrast as low as 20%, making it suitable for faded or low-quality barcodes.
• Power Efficiency: Operates on a 5V DC supply with low power consumption (456mA during operation).
• Light Immunity: Functions effectively under lighting conditions ranging from 0–100,000 Lux.
Compatibility
The DC5132 scanner is designed to scan from a variety of surfaces, including paper, thin films, mobile phones, and flat screens. It boasts robust decoding capabilities, supporting an extensive range of barcodes. For 1D barcodes, it covers formats such as Codabar, Code 39, Code 128, UPC-A, UPC-E, EAN/JAN, GS1 DataBar, and more. In terms of 2D barcodes, it supports QR codes, PDF417, MaxiCode, Aztec, DataMatrix, and postal codes from various regions, including Austrian Post, Canada Post, and Japan Post.
Reliability
The device is built for durability, designed to withstand drops of up to 2 meters, ensuring reliability even in rugged environments. It operates efficiently in a wide temperature range from 0°C to 50°C and can be stored in temperatures ranging from -30°C to 70°C. Additionally, the device performs optimally in humidity levels between 5% and 95% (non-condensing), making it suitable for various conditions. It is backed by a 24-month warranty against manufacturing defects, offering peace of mind to users.
